FAMED LM-01.4 Delivery Bed
N-FAMLM014
New product
€7,534.00
Tax excluded
attach_money
Offer Your Price
Available

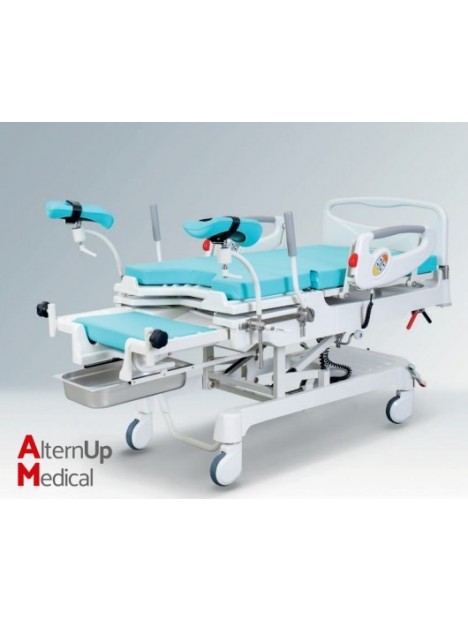

FAMED LM-01.4 Delivery Bed
The delivery bed Famed LM-01.4 is a compact structure for patients in gynecology and obstetrics departments at every stage of delivery.
With 3-section pallet (backrest, seat segment, slidable shank rest segment).
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
FAMED LM-01.4 Delivery Bed
The delivery bed Famed LM-01.4 is a compact structure for patients in gynecology and obstetrics departments at every stage of delivery.
SEVERAL CONTROL OPTIONS
The bed can be controlled from the panels mounted in the side rails (height adjustment, backrest adjustment, lamp on/off, alarm activation). The central panel or foot control can provide additional functionality. The backrest is released by means of the easy-to-use CPR lever.
SOLID GUARDRAILS
The guardrails are made of plastic, the upper parts are equipped with polyurethane anti-slip protections. The guardrails are stable so that the back can be supported and can be lowered at any time. The alarm module can be connected to the hospital's alarm system.
EXTENSIVE EQUIPMENT
The delivery bed is equipped with a set of mattresses in a choice of colors - two mattresses for the base and one mattress for the newborn. In addition to the standard equipment, you will also find footrests, armrests, WS-05.6 knee rests and a stainless steel bowl.
OPTIONS (not included in price):
- • Drip bottle holder with 2 hooks (1pce) with adaptors WK-15.0 (2pcs)
- • Trolley for accessories (1pce)
- • Holder for squatting position.
N-FAMLM014
Specific References
New product
Selected positions of the Freya bed:
- The delivery bed can be easily converted into a chair that allows the woman to assume the comfortable position.
A wide range of applications
- A wide range of equipment allows specialized examinations and delivery to be performed in a position that best suits the patient's anatomy. The bed can be used for rectoscopy, gynecological examinations and palpation.
Legendary quality of workmanship
- The bed is powder coated, resistant to UV rays, mechanical damage and disinfectants.
- Height adjustment, back and seat segment angle inclinations performed by electric actuators (24 V DC) controlled by control panel in side rails, central control panel and foot controller
- Control panels in side rails available from patient and staff sides enable controlling following functions: bed frame height adjustment, back segment inclination angle, floor lighting switch, alarm
- Trendelenburg and reverse Trendelenburg positions are regulated by interlocking gas springs
- Back rest with CPR function
- Control system with battery
- Head, foot board and side rails are made of ABS
- Bed is equipped with: set of mattresses (two mattresses; back rest, seat and one for a new-born baby), footrests, retractable hand grip, knee rests WS-05.6, stainless steel bowl. ABS covers for seat and shank segments and for bed chassis. Wheels with central brake system.
- Length: 2170 mm
- Width (overall): 1080 mm
- Minimum height: 615 mm
- Maximum height: 985 mm
- Back rest segment inclination: 70°
- Thigh rest segment inclination: 17°
- Trendelenburg position: 12°
- Reverse-Trendelenburg position: 5°
- Maximum load: 230 kg
