Datex Ohmeda S/5 Aespire Anesthesia Ventilator

Datex Ohmeda S/5 Aespire Anesthesia Ventilator

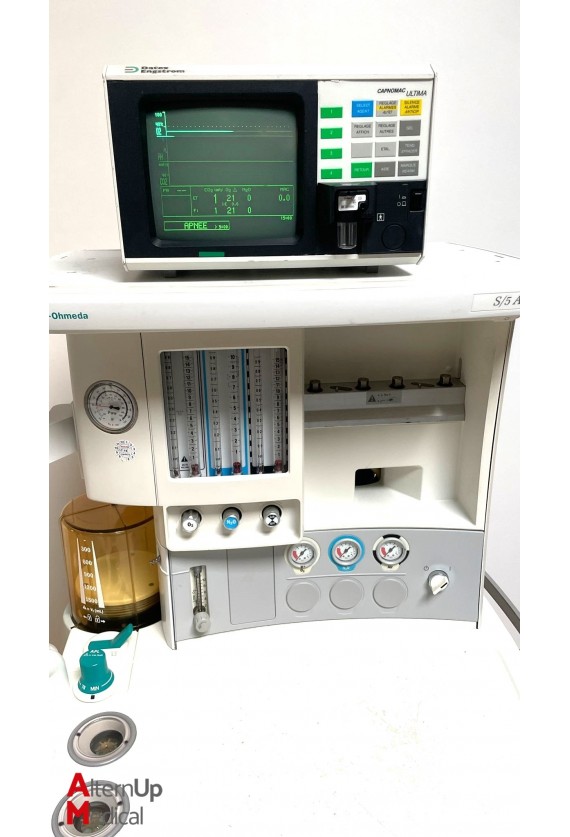

Supplied with a patient monitor

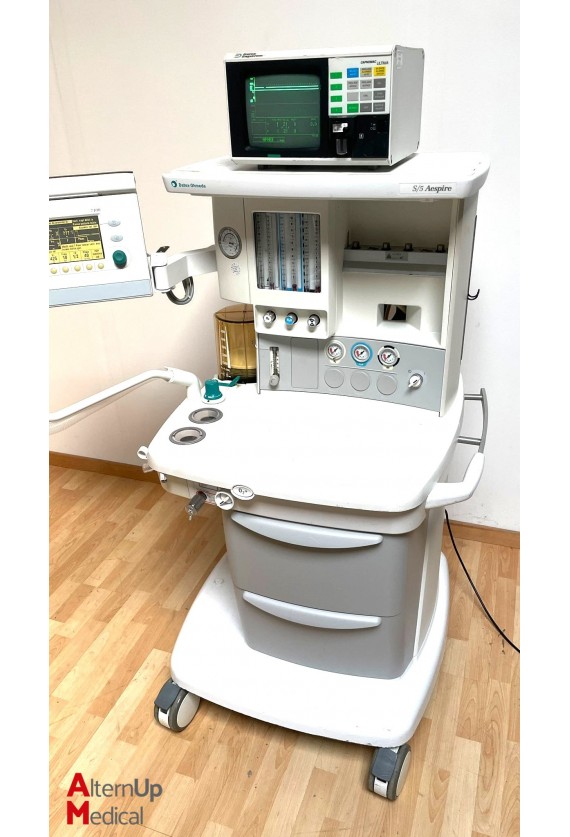

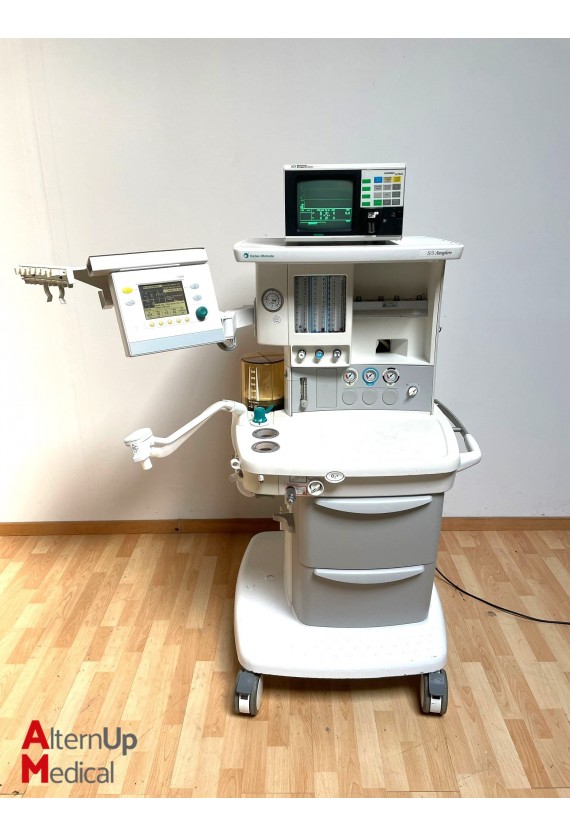

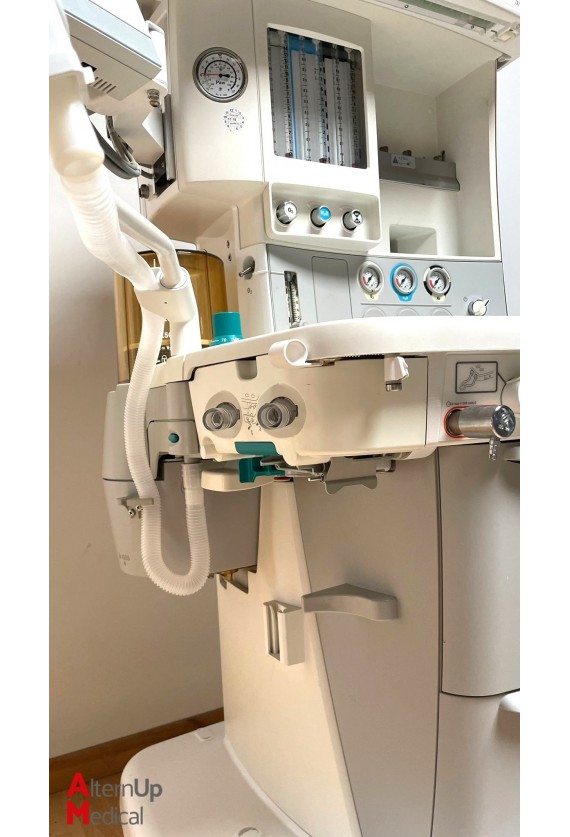

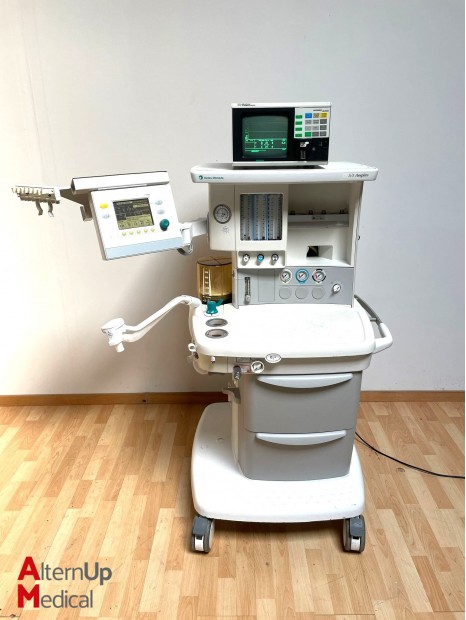

The GE Datex Ohmeda S/5 Aespire ventilator is a compact anesthesia machine. The Aespire ventilator is equipt with a fully integrated workstation, with a large workspace and connections for additional O2 and suction control. Additionally, the anesthesia machine can be connected to a patient monitor for additional monitoring parameters. The Aespire features the latest technology in the Advanced Breathing Systems (ABS). There are fewer tubes to connect which reduces the risk of potential leaks and misconnections, improving the patient's safety.

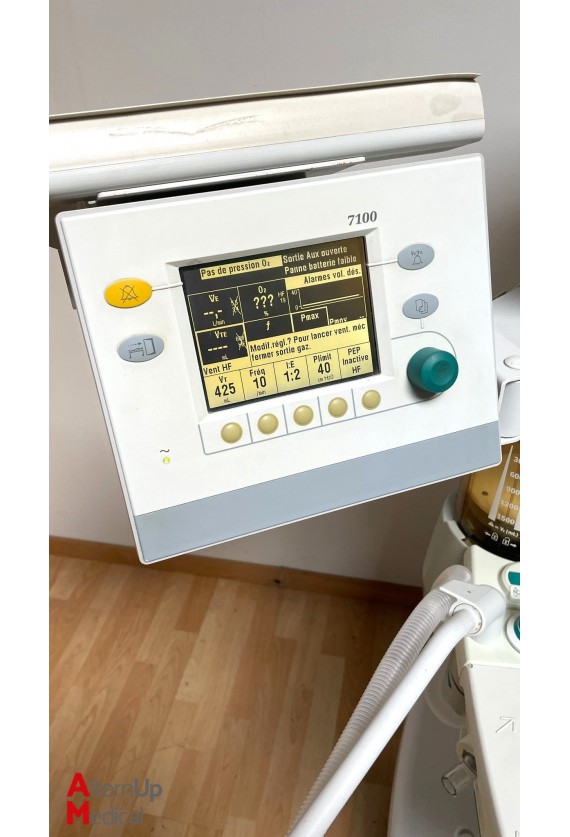

The Datex Aespire have a 7100 ventilator. this ventilator is microprocessor-based, electronically-control, and pneumatically driven. The S/5 Aespire’s ventilator have built-in monitoring for inspired oxygen, airway pressure, and exhaled volume. This ventilator is designed to be used to aid in the delivery of anesthesia and are part of the GE Datex Ohmeda S/5 Aespire anesthesia machine.

Ventilator Monitoring Boards

The 7100 ventilator is accompanied by a Ventilator Monitoring Board (VMB) which serves as the interface between the ventilator's control board and the breathing system sensors and switches. It passes different switch functions through to the ventilator control module and provides power to the task light. Respiratory gas flow, to and from the patient, is monitored by measuring the differential pressure across a variable orifice in each flow sensor. The pressure transducers measure the differential pressure on the VMB.

GE Datex Ohmeda S/5 Aespire Anesthesia Machine Features

- Power up is quick and easy in your fast-paced environment.

- Minimum 02 flow of 50 mL available with dual flow tubes, ensures accuracy in low flow situations.

- Enhanced hose and cable management reduces disconnects and clutter.

- Lightweight and compact for easy maneuverability.

- Larger work surface for supplies and chart.

- Two large drawers provide more storage.

- Removable drawer insert conveniently stores small items.

- Smooth, durable surfaces for cleaning ease.
