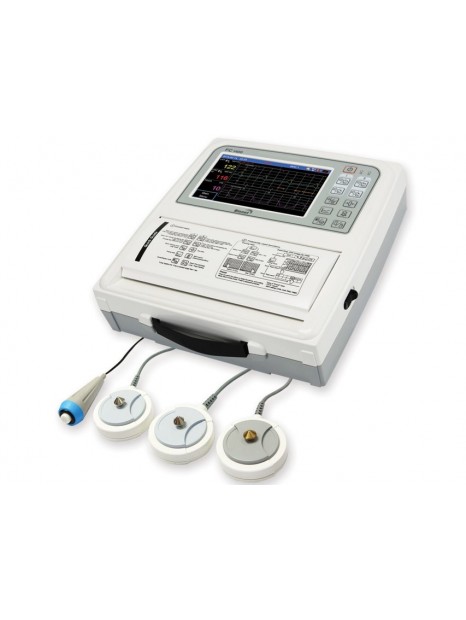

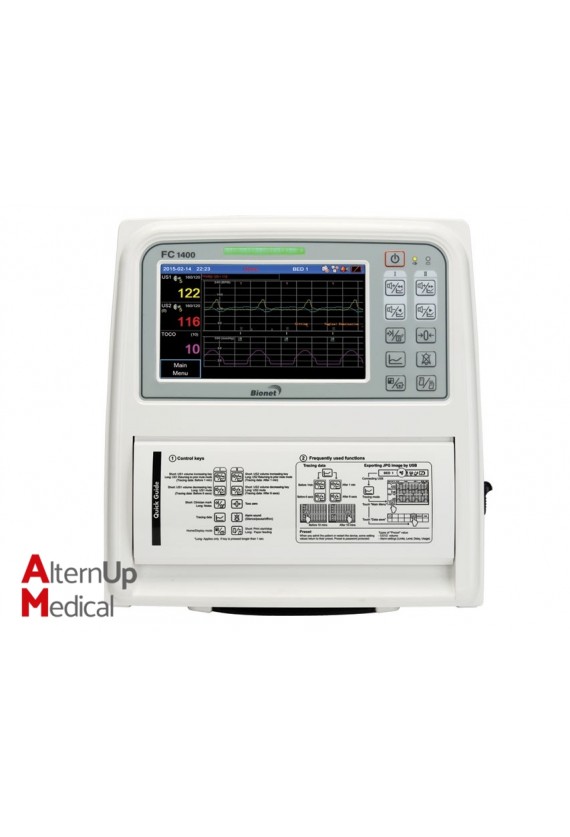

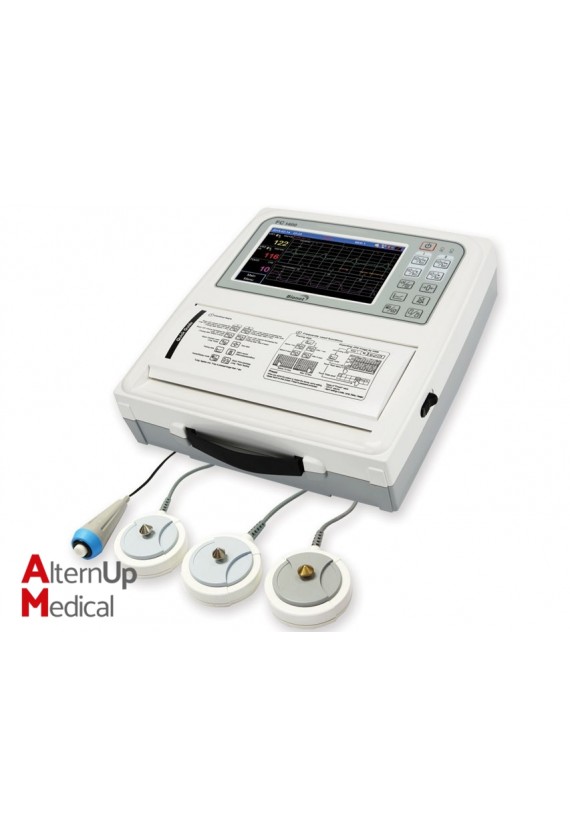

FC1400 Twins Foetal Monitor
Antepartum foetal monitor to measure Foetal Heart Rate (FHR), degree of material uterine contraction (UA: Uterine Activity), foetal movements (FM).
Twin Foetal monito with LCD color display, built-in printer, PC compatible.
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
FC1400 Twins Foetal Monitor
Antepartum foetal monitor to measure Foetal Heart Rate (FHR), degree of material uterine contraction (UA: Uterine Activity), foetal movements (FM).
Recommended after week 30.
Superior data display
- 7" full touch screen colour TFT LCD (800x480)

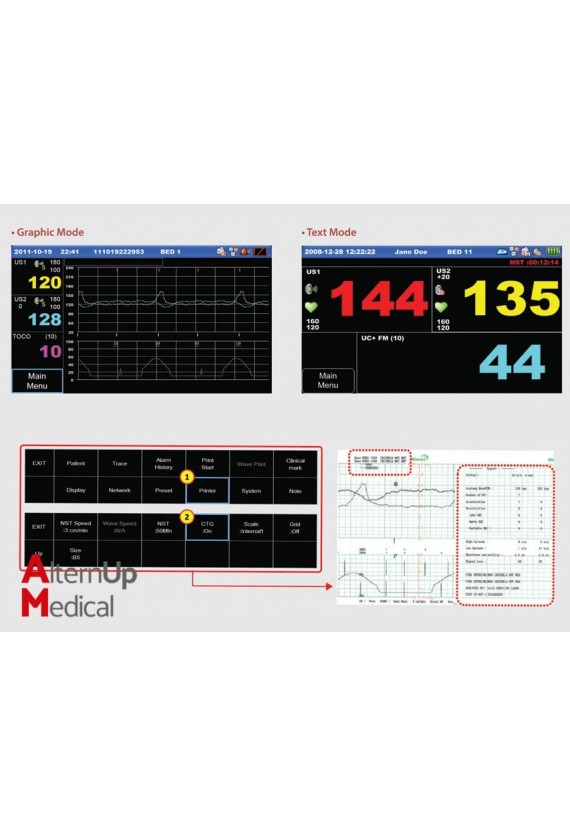

- 2 display modes: graphic and text modes
- 72 hours of memory capacity
Extreme data accuracy and access
- high-accuracy and wide detection area
- easy on-screen scrolling function
- endurable watertight probes, 1 MHz to minimize broken FHR waveforms even if the fetus moves

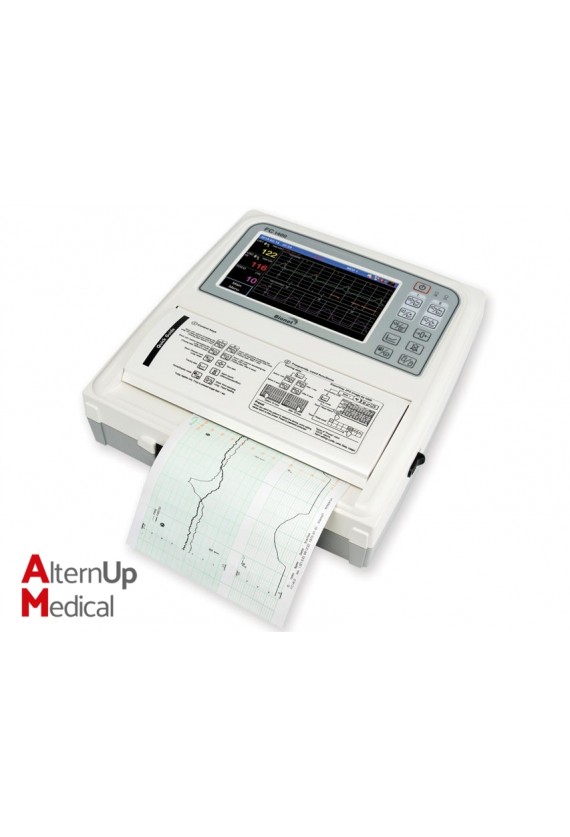

Printout
- CTG interpretation report
- both standard and A4 size paper usable
- normal fax paper usable
Other advantages
- Wi-Fi central monitoring up to 16 beds (Option)
- PC compatible
- internal battery lasting 2-hours (Option)
- power adapter 100-240 V, 50-60 Hz
- multilanguage internal software: GB, FR, IT, ES, PT, DE, PL, RO, RU, CZ, HU, BG, TR, KR, CN.
N-29517
Specific References
New product
• Dimensions: 296 x 97.5 x h 305.5 mm - Approx. 2.9kg
• Display: 7" TFT Wide LCD screen (800x480)
• Thermal array printer: print speed: 1, 2, 3 cm/min (real time), paper feeding function
• Power input:
- 100-240 V, 1.5-0.7 A, 50-60 Hz
- output: +18 V = 2.8 A
• Li-ion battery (option): 4 hours (charging) - 2 hours (discharging)
• External link: LAN, Wi-Fi, USB memory
• Foetal heart rate
- input signal: ultrasound pulsed doppler
- ultrasound frequency: 1.0 Mhz, 975 Khz
- ultrasound power: <10 mW/cm2
- FHR detection method: autocorrelation
- FHR range: 50-210 bpm ±1 bpm (120-160)
• Foetal movement measurement: detection source: ultrasound pulsed doppler, event marker
• Uterine contraction
- input source: external transducer with load cell
- reference control: one touch switch, auto zeroing
- measurement range: 0-99
• Auto CTG analysis
- average baseline FHR
- number of UC
- number of acceleration
- number of deceleration
- late deceleration
- early deceleration
- variable deceleration
- high episode
- low episode
- short term variability
- signal loss
